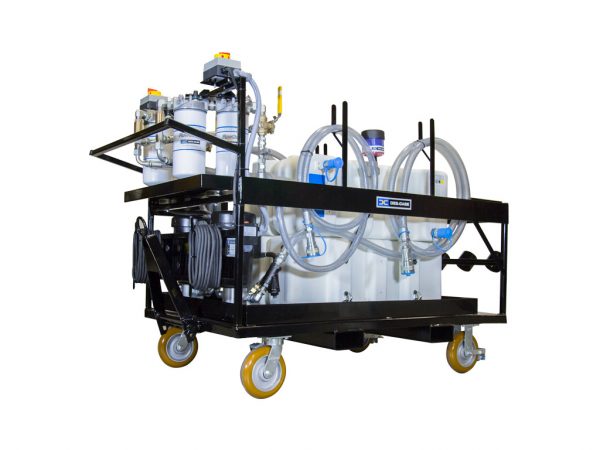

Des-Case Mobile Utility Cart
Filtration, storage and handling in a combined 3-in-1 mobile system provides a single solution to keep your lubricants clean and dry (if not ok for plagiarism then use ‘moisture free’).
Able to handle a wide range of lubricants and viscosities and deliver to multiple assets, the Des-Case Mobile Utility Cart is effectively a portable filtration system, lube room and transfer container all rolled into one!
Product Details
Performance
Used for the filtration of mineral-based industrial oils and most synthetic oils with a viscosity range up to ISO VG 680 (648 cSt) at 100°F / 38°C and within the ambient temperature range of -15°F /-26°C to 104°F / 40°C..
Filter Indicators
The Filter indicator pops at 22 psid / 1.55 bar warning that the filter elements need to be replaced.
Pump Relief
Opens at 65 psi / 5.49 bar.
Materials
- Cart: Carbon steel
- Tank: HDPE
- Paint: Industrial powder coat
- Filter heads: Aluminum
- Fittings: Zinc-plated steel and/or brass
- Pumps: Aluminum/steel
- Hoses: Clear PVC with steel wire
- Gaskets: Buna-N
Standard
- Heavy-duty frame with powder-coated, industrial paint
- Features storage tray for IsoLink™ oil transfer containers (removable)
- Oil Drip pans
- Automatic pump pressure relief valve
- Dual-stage filtration
- Non-bypass filter heads prevent particles from passing by when the filters reach maximum saturation
- Dedicated pump and motor per tank
- Desiccant breathers for tanks
- HDPE tanks in 35gal/132litre or 65gal/246litre volumes
- 12ft / 3.66m hose assemblies with various hose-end connection options
- 25ft / 7.62m cords (for electric motors only)
- 1-year warranty
Customizable
- Filter bypass
- Filter micron rating
- Flow rates
- Hose-end connection sizes and types
- Sample valves
- Tank sizes
- Y-Strainer
- Dispensing new lubricant
- Decontaminating systems
- Extracting used oil
- Lubricant storage
- Flushing new or overhauled machinery or systems
- Pre-filtering new lubricant
- Reservoir top-offs
- Collecting oil samples for analysis
