Whitmore D-Series Desiccant Breathers

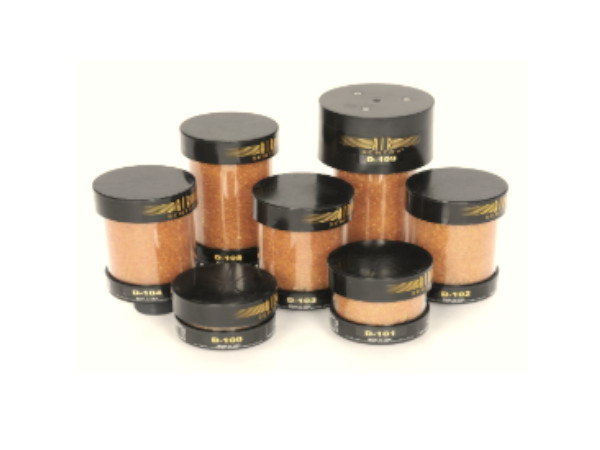

desiccant breathers d series whitmore photo

The D-Series Breathers feature a wide range of models of many sizes and thus caters to most applications which involve stationary fluid management.

For better flexibility, we can supply breathers with solely silica gel for moisture adsorption, solely activated carbon for fume and odour control or even a mix of these, as the application may require.

All Whitmore breather models come with 2-micron solid particle filtration and have an airflow rating of 20 cfm (566 lpm).

Request Information

Product Details

Specs
Model No. Height

 Diameter

 Mounting Connection Silica Gel Max. Adsorp. Capacity Max. Air Flow Reservoir Max. Fluid Flow Medium Type
D-101 5 in 5 in 1 inch slip-fit 1.4 lbs 8.6 fl oz 20 cfm 150 gpm Silica Gel
2.7 cm 12.7 cm 1 inch slip-fit 0.6 kg 254 ml 566 lpm 568 lpm Silica Gel
D-154 5 in 5 in 1 inch MNPT 1.4 lbs 8.6 fl oz 20 cfm 150 gpm Silica Gel
12.7 cm 12.7 cm 1 inch MNPT 0.6 kg 254 ml 566 lpm 568 lpm Silica Gel
D-102 8 in 5 in 1 inch slip-fit 2.7 lbs 16.56 fl oz 20 cfm 150 gpm Silica Gel
20.3 cm 12.7 cm 1 inch slip-fit 1.2 kg 489 ml 566 lpm 568 lpm Silica Gel
D-103 8 in 5 in 1 inch MNPT 2.7 lbs 16.56 fl oz 20 cfm 150 gpm Silica Gel
20.3 cm 12.7 cm 1 inch MNPT 1.2 kg 489 ml 566 lpm 568 lpm Silica Gel
D-104 8 in 5 in 2 inch MNPT 2.7 lbs 16.56 fl oz 20 cfm 150 gpm Silica Gel
20.3 cm 12.7 cm 2 inch MNPT 1.2 kg 489 ml 566 lpm 568 lpm Silica Gel
D-108 10 in 5 in 2 inch MNPT 3.5 lbs 21.47 fl oz 20 cfm 150 gpm Silica Gel
25.4 cm 12.7 cm 2 inch MNPT 1.6 kg 634 ml 566 lpm 568 lpm Silica Gel
Benefits
Constructed of industrial-grade materials
Tested for compatibility with wide range of chemicals
Top and bottom caps constructed in high-impact resistant ABS
Easy inspection of colour-changing silica from distrance through transparent acrylic tube
Silica granules turn from gold to dark green, indicating the job is done and replacement is due
